Getting Complex Tube Fabrication Right

What Makes Complex Tube Fabrication So Challenging?

When people think of “complex parts,” they often imagine elaborate shapes or oversized assemblies. But in complex tube fabrication, the challenges come in many forms, and it doesn’t always look flashy at first glance. It’s what lies beneath the surface (literally and figuratively) that determines whether a part will be simple to run or require deep expertise.

For manufacturers, buyers, and engineers alike, understanding these complexity drivers is essential, not just for quoting and planning, but for setting realistic expectations around consistency, lead time, and cost.

Challenging Geometries

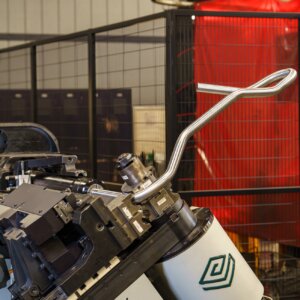

Complexity often starts with geometry. Multi-plane bends, tight radii, or variable radius curves introduce risk for wrinkling, distortion, and springback. Achieving consistent results on these shapes demands advanced tube bending equipment, custom tooling, and seasoned operators.

Key considerations:

• Are the bends in multiple planes or orientations?

• Do any bends push material limits on radius vs. diameter?

• Is a mandrel or wiper die required to maintain internal surface integrity?

As a result, understanding geometric challenges early helps prevent issues that could affect quality or performance later in the process.

Tight Tolerances and Consistency

Tolerance stacking is a reality in fabricated assemblies. The tighter the tolerance, the smaller the margin for

error in each process step from cutting and bending to end-forming and finishing. Complex parts often require precise setup documentation, bend correction routines, and in-process verification.

Examples of tight tolerance requirements:

• ±0.5° bend angle

• ±0.010″ cut length accuracy

• Post-bend features (like slots or brackets) that must remain aligned

Ultimately, these tolerances don’t just impact individual parts—they influence the fit, function, and reliability of the entire assembly.  This is a core reason why complex tube fabrication requires more than just the right equipment – it demands precise, repeatable process control

Material Behavior and Consistency

Different materials bend and form differently—and some resist bending altogether. Stainless, for example, is prone

 to work hardening and springback, while aluminum can mar easily during processing. A part that requires cosmetic perfection in stainless is far more complex than one made of mild steel.

Material factors that add complexity:

•

  Surface sensitivity

• High springback rates

• Work hardening characteristics

Because of this, knowing how different materials behave under stress is critical to preventing distortion and maintaining control throughout the fabrication process.

Cosmetic Requirements Add a New Layer

When a tube is visible whether in medical equipment, furniture, or mobility devices, surface finish becomes critical.  In these cases, even minor imperfections are unacceptable.

Cosmetic considerations may include:

• Polishing, brushing, or plating requirements

• Scratch- and dent-free handling and fixturing

• Clean, consistent welds with no discoloration

These aesthetic demands require an elevated level of care in both process setup and handling, which adds to overall part complexity.

Secondary Operations and Assemblies

A tube part rarely ends at the bend. Adding additional fabrication services like end-forming, hole punching, welding, or machining raises the complexity, especially when everything must remain aligned and repeatable.

Integrated processes require:

• Dimensional accuracy across stages

• Fixturing that controls part movement

• Tolerance stack-up analysis in multi-step builds

Every added step increases the opportunity for variation—making process control even more essential to ensure reliable outcomes.

Repeatability: The Heart of Complex Tube Fabrication

Anyone can get a complex part right once. The real challenge in manufacturing is doing it again and again with the same precision every time. Repeatability is where complexity becomes truly demanding.

In tube fabrication, repeatability means more than just hitting specs. It’s about managing every variable – geometry, material behavior, fixturing, finish, and flow- so that each part is as consistent as the last, no matter the volume or frequency of the order

At Leonhardt Manufacturing, we’ve built our reputation on doing the hard things well and doing them consistently. Our team thrives on the challenge of complex tube fabrication, delivering precise, repeatable results that meet both functional and aesthetic demands, every time.

If you’re facing challenges with consistency in complex tube parts, we’d love to talk.

Contact us to learn how we can support your next project.
