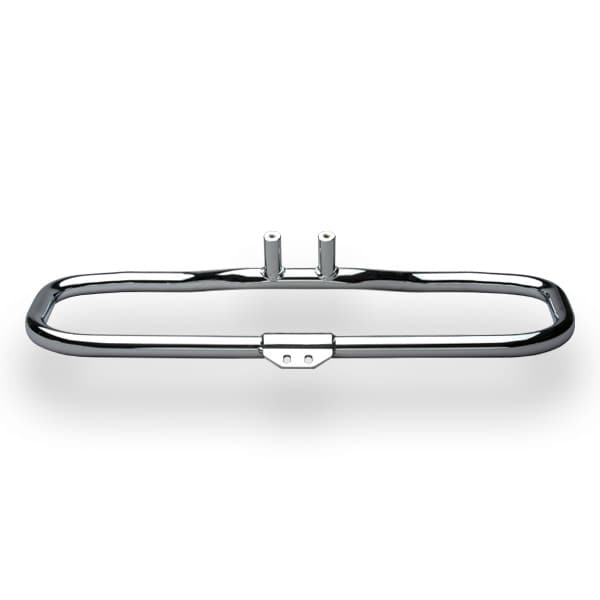

Closed Loop Engine Guard
- Single Continuous Bend Process
- Invisible Weld Seams are MIG Welded, Ground and Polished
Closed Loop Engine Guard
- Single Continuous Bend Process
- Invisible Weld Seams are MIG Welded, Ground and Polished

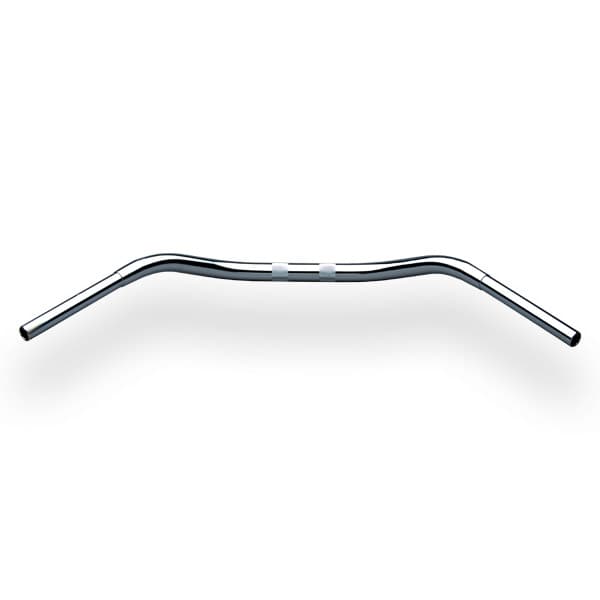

Motorcycle Handle Bar
- 1″ Tube Inserted into 1 ¼” Tube
- Induction Brazed Tubes
- Knurled
- Chrome Plated & Polished
Stainless Steel Vent Tube
- 5/16 Diameter X .035 Wall Thickness
- 304 Stainless Material
- End Forming Includes Swaged, Beveled and Beaded
Hydraulic Oil Tube Assembly
- Pressure Tested to 100 PSI
- 4 Components Include Flex Hose w/Ferrules, Machined Component, and Bent Tubular Parts
- Beaded End Forming
Motorcycle Luggage Rack
- Multiple Bend Radii
- TIG Welded Mounting Brackets (Stamped In-house)
- TIG Welded Coped Tubes
- Chrome Plated & Polished
- 100% Leak Tested

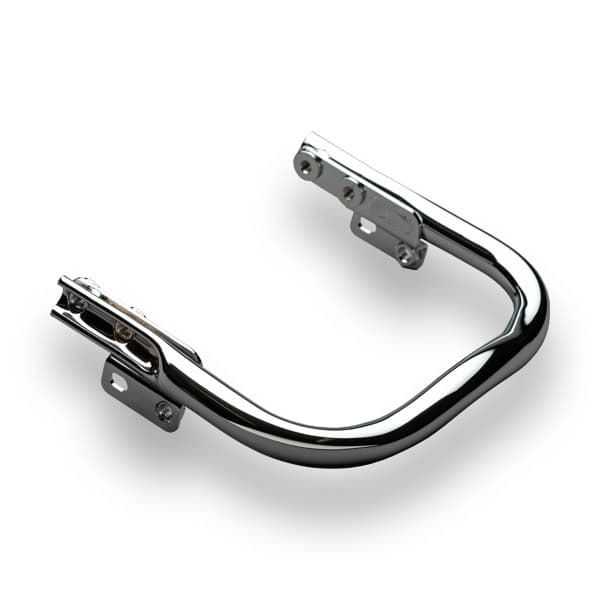

Mounting Bracket with Compound Bending
- Welded Mounting Brackets
- Chrome Plated & Polished

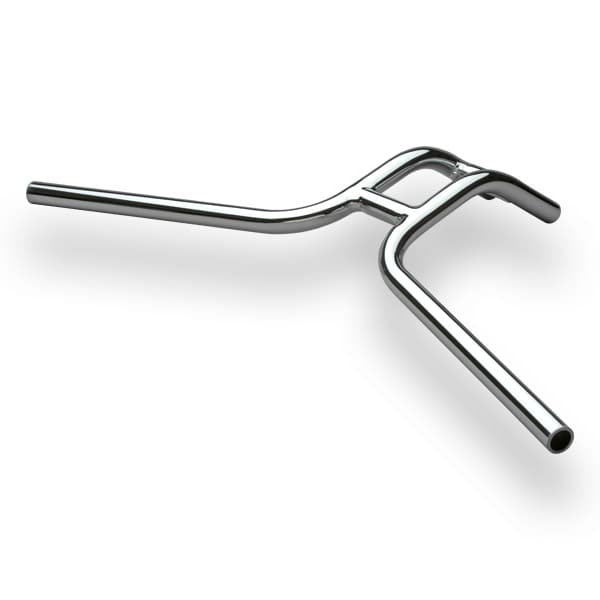

Handle Bar Assembly
- Invisible Metal Finished & Polished Weld Joints
- Machined & Pressed-in Threaded Inserts
- Heat Treated & Polished

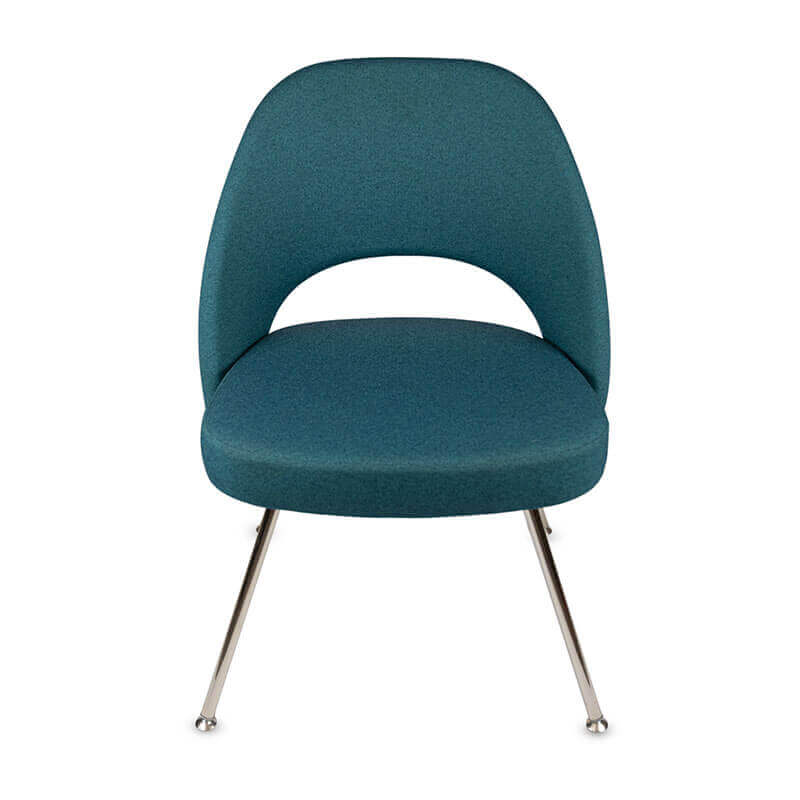

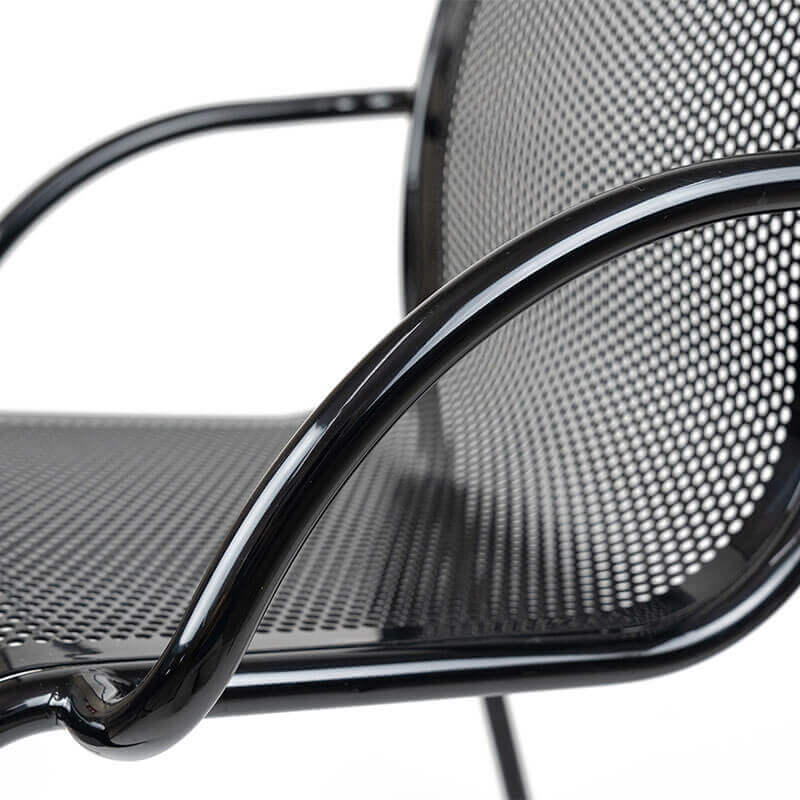

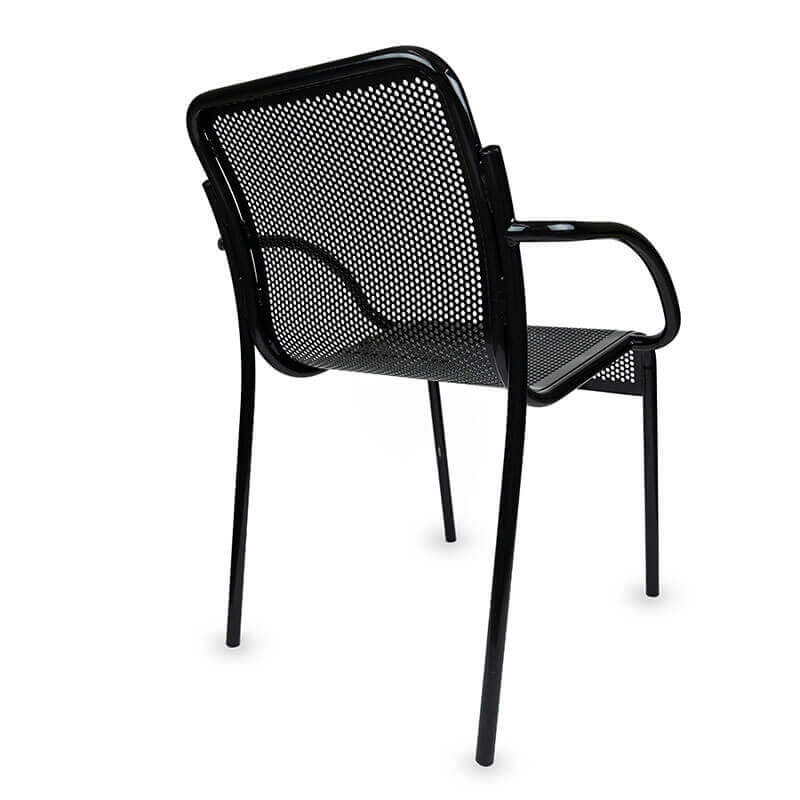

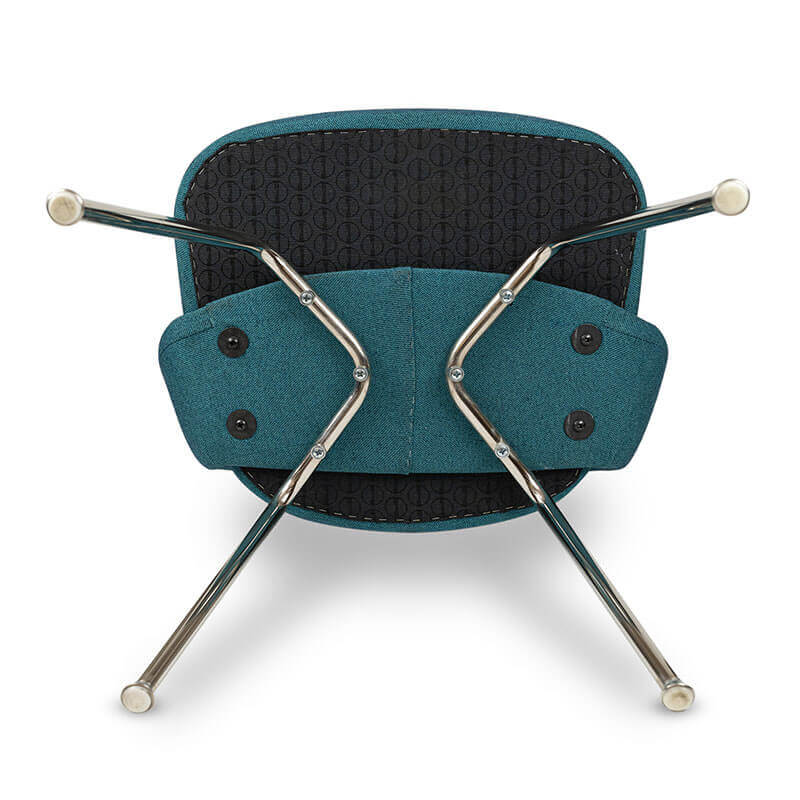

Furniture
- Complex Multiple Bend Radii
- Available In Many Finishes
Furniture
- Complex Multiple Bend Radii
- Available In Many Finishes
Furniture
- Complex Multiple Bend Radii
- Available In Many Finishes
Furniture
- Complex Multiple Bend Radii
- Available In Many Finishes
Furniture
- Quality, Durable Fabrication
- Available In Many Finishes
Furniture
- Quality, Durable Fabrication
- Available In Many Finishes
Leonhardt Manufacturing provides extensive tube bending services for a wide range of applications and tubular products. Tube bending equipment ranges from simple tube benders to state-of-the-art multi-radius CNC tube bending machines capable of production runs and delivering complicated bent tube products of the highest quality and standards.
With a focus on delivering highly decorative bent tubing and tubular products, an emphasis is placed on delivering precise, clean radius bends ready for polishing and/or chrome plating.
Tube Bending Capabilities
- Tubes Sizes from .25″ Outside Diameter to 3″ Outside Diameter
- Multi-Radius Tube Bending
- One Piece, Continuous Loop (Full Radius) Tubing Bends
- Compound Tube Bending
- Length Up to 12 Ft.
- Bend Radius from .5″ To 12″
- Calendaring
- Tube Bends Include CNC Rotary or Manual Rotary Arm Mandrel Tube Bending, Compression And Ram Tube Bending, Three-Wheel Roll Bending, Double Headed Draw Bending, and Interpolation Bending
THE LEONHARDT ADVANTAGE
- Work to Customer Specifications Regarding Materials, Tolerances, Performance, Durability and Cost.
- 95,000 Square Foot Manufacturing Facility
- Compound Tube Bending / Multi-Radius and Variable Radius CNC Tubing Bending
- CNC Robotic MIG Welding and TIG Welding
- ASME Certified Welders
- Metal Stampings and Sub-Assemblies
- Lean Manufacturing Processes Ensure High Efficiency and Quality at the Lowest Possible Costs
- Supply Chain Management Services Streamline your Manufacturing and Lower Costs by Combining Multiple Processes, Suppliers and Asset Management
DELIVERING SOLUTIONS
TO COMPANIES LOOKING FOR:
- Heavy Duty, Industrial, Structural or Custom Metal Fabrications Manufacturing
- Reduced Expenses Through Lean Manufacturing, JIT Delivery, and Streamlined Supply Chain Management
- Fabricated Components at Production Quantity Levels
- Exacting Product Tolerances
- A Supplier Who Understand The Unique Demands of OEMs
FEATURED JOB STORY
Outsourced Manufacturing for the Mass Transit Industry
After evaluating multiple contract outsourcing vendors, a leading manufacturer of passenger rail car seating chose Leonhardt Manufacturing as their preferred partner because they offered a complete suite of engineering, fabrication, welding, and polishing services delivering a turnkey solution.
