Tube Bending Design Guidelines for Better Production

You’ve got a part that works. It fits, it functions, and it’s already in production. However, if it’s harder or more time-consuming to manufacture than necessary, it may be time to revisit your tube bending design guidelines.

Even small design choices can significantly impact production. Bend radii, tolerances, material specs, and finish requirements all influence how consistently and efficiently a part can be made. These factors become especially important when scaling production, switching suppliers, or increasing throughput.

Below are five common design issues that often surface once a product hits the production floor—and how you can resolve them without compromising performance.

Overly Tight Bend Radii

Tight centerline radii are sometimes necessary to meet design constraints. But in many cases, they push the limits of what’s manufacturable—especially when wall thickness, material behavior, and tooling aren’t aligned.

Common issues:

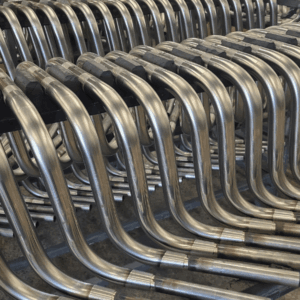

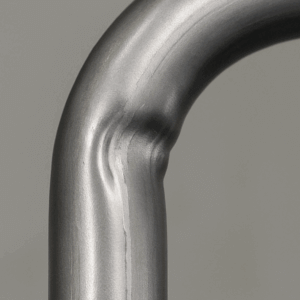

• Wrinkling or collapse on the inner radius

• Thinning or cracking on the outer radius

• Deformation that affects fit or assembly

Cost impact: Tight bends require specialized tooling, longer setup time, and more frequent quality checks. These all slow production and reduce efficiency.

DFM tip: If functionality allows, relax the radius. A 2x OD bend is typically ideal for most metals and promotes tooling longevity and consistent results.

Unclear or Incomplete Specifications

Just because a prototype works doesn’t mean it will scale. Success in production requires complete, unambiguous documentation.

Common oversights:

• Missing bend tolerances

• Undefined wall thickness or material grade

• Vague or incomplete end treatment specs

Cost impact: Incomplete specs lead to quoting delays, inconsistent results, and supplier confusion.

DFM tip: Always include full bend data, material specifications, and—ideally—a 3D model. Clear and complete tube bending design guidelines ensure repeatability across batches and vendors.

Overly Broad Finishing Requirements

A polished surface can enhance a product’s appearance—but only where it matters. When finishing is overapplied, it adds unnecessary labor.

Common missteps:

• Applying cosmetic finishes to hidden or internal surfaces

• Polishing parts before forming, requiring rework

• Specifying finishes on non-visible areas

Cost impact: Finishing consumes time, adds complexity, and increases the chance of scrap or rework.

DFM tip: Be selective. Only specify finishes where they’re functional or visible. This approach preserves quality while improving throughput.

Designs That Complicate Fixturing

Precision in tube bending starts with reliable fixturing. If a part is hard to hold or align, it’s hard to produce consistently.

Common challenges:

• Bends in multiple planes with no clear fixturing points

• Long unsupported spans that flex under pressure

• Parts requiring manual repositioning or multiple setups

Cost impact: Complex fixturing leads to slower setups and higher variation.

DFM tip: Simplify geometry where possible, and design with fixturing in mind. Even small locating features can enhance part consistency and reduce operator intervention.

Tube and Weldment Mismatch

Tube components are often part of a larger assembly. Problems arise when those mating components don’t account for real-world bending behavior.

Common issues:

• Brackets that don’t align due to springback

• Gaps at weld joints

• Assemblies that require grinding, trimming, or excessive adjustment

Cost impact: Assembly problems lead to rework, wasted time, and inconsistent product fit.

DFM tip: Coordinate tube design with weldments early. Involving your fabricator during the design phase helps align geometry and tolerances across all parts.

Keep It Simple and Scalable

A part may be in production, but that doesn’t mean it’s optimized for production. Over time, inefficiencies like tight bends, vague specs, and unnecessary finishing can silently increase labor, variation, and cycle times.

Applying strong tube bending design guidelines helps streamline operations, reduce complexity, and support consistent results across repeat runs.
